ca.infoway.messagebuilder.model.pcs_mr2007_v02_r01.pharmacy.merged
Class DeviceDispenseBean

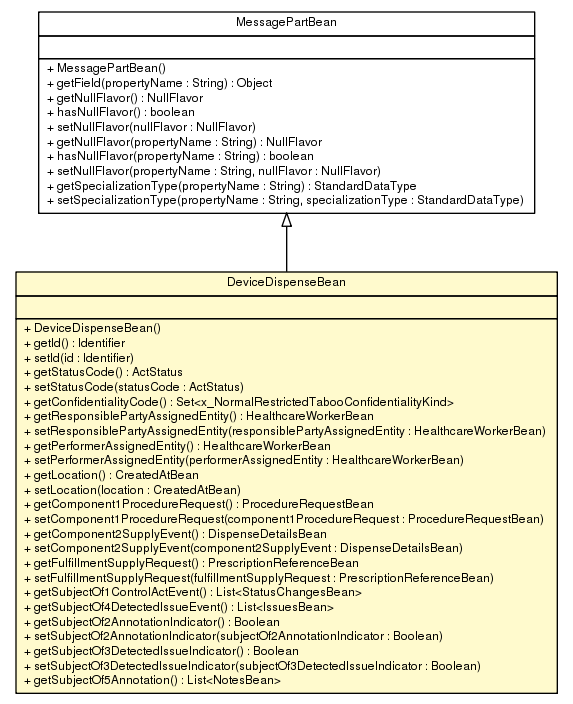

Package class diagram package DeviceDispenseBean

java.lang.Object
  ca.infoway.messagebuilder.model.MessagePartBean
      ca.infoway.messagebuilder.model.pcs_mr2007_v02_r01.pharmacy.merged.DeviceDispenseBean

All Implemented Interfaces:: NullFlavorSupport, Serializable

public class DeviceDispenseBean
extends MessagePartBean
extends MessagePartBean

PORX_MT060010CA.DeviceDispense: Dispense

Annotation is only permitted if Annotation Indicator is not present

Reported Issue is only permitted if Issue Indicator is not present

One of DetectedIssueIndicator or Reported Issues detailed info must be returned, but not both

One of AnnotationIndicator or Annotation detail info must be returned, but not both.

This is a 'core' class of the medication model and is important for understanding what drugs the patient is actually receiving.

Describes the issuing of a drug in response to an authorizing prescription.

PORX_MT060040CA.DeviceDispense: Prescription Dispenses

Reported Issue is only permitted if Issue Indicator is not present

Annotation is only permitted if Annotation Indicator is not present

Dispensing is an integral part of the overall prescription process.

This is the detailed information about a device dispense that has been performed on behalf of a patient.

See Also:: Serialized Form

Constructor Summary
`DeviceDispenseBean()`

Method Summary
`ProcedureRequestBean`	`getComponent1ProcedureRequest()` Un-merged Business Name: (no business name specified)
`DispenseDetailsBean`	`getComponent2SupplyEvent()` Un-merged Business Name: (no business name specified)
`Set<x_NormalRestrictedTabooConfidentialityKind>`	`getConfidentialityCode()` Business Name: PrescriptionMaskingIndicators
`PrescriptionReferenceBean`	`getFulfillmentSupplyRequest()` Un-merged Business Name: (no business name specified)
`Identifier`	`getId()` Business Name: PrescriptionDispenseNumber
`CreatedAtBean`	`getLocation()` Un-merged Business Name: (no business name specified)
`HealthcareWorkerBean`	`getPerformerAssignedEntity()` Un-merged Business Name: (no business name specified)
`HealthcareWorkerBean`	`getResponsiblePartyAssignedEntity()` Un-merged Business Name: (no business name specified)
`ActStatus`	`getStatusCode()` Business Name: DispenseStatus
`List<StatusChangesBean>`	`getSubjectOf1ControlActEvent()` Un-merged Business Name: (no business name specified)
`Boolean`	`getSubjectOf2AnnotationIndicator()` Un-merged Business Name: (no business name specified)
`Boolean`	`getSubjectOf3DetectedIssueIndicator()` Un-merged Business Name: (no business name specified)
`List<IssuesBean>`	`getSubjectOf4DetectedIssueEvent()` Un-merged Business Name: (no business name specified)
`List<NotesBean>`	`getSubjectOf5Annotation()` Un-merged Business Name: (no business name specified)
`void`	`setComponent1ProcedureRequest(ProcedureRequestBean component1ProcedureRequest)` Un-merged Business Name: (no business name specified)
`void`	`setComponent2SupplyEvent(DispenseDetailsBean component2SupplyEvent)` Un-merged Business Name: (no business name specified)
`void`	`setFulfillmentSupplyRequest(PrescriptionReferenceBean fulfillmentSupplyRequest)` Un-merged Business Name: (no business name specified)
`void`	`setId(Identifier id)` Business Name: PrescriptionDispenseNumber
`void`	`setLocation(CreatedAtBean location)` Un-merged Business Name: (no business name specified)
`void`	`setPerformerAssignedEntity(HealthcareWorkerBean performerAssignedEntity)` Un-merged Business Name: (no business name specified)
`void`	`setResponsiblePartyAssignedEntity(HealthcareWorkerBean responsiblePartyAssignedEntity)` Un-merged Business Name: (no business name specified)
`void`	`setStatusCode(ActStatus statusCode)` Business Name: DispenseStatus
`void`	`setSubjectOf2AnnotationIndicator(Boolean subjectOf2AnnotationIndicator)` Un-merged Business Name: (no business name specified)
`void`	`setSubjectOf3DetectedIssueIndicator(Boolean subjectOf3DetectedIssueIndicator)` Un-merged Business Name: (no business name specified)

Methods inherited from class ca.infoway.messagebuilder.model.MessagePartBean
`getField, getNullFlavor, getNullFlavor, getSpecializationType, hasNullFlavor, hasNullFlavor, setNullFlavor, setNullFlavor, setSpecializationType`

Methods inherited from class java.lang.Object
`clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait`

Constructor Detail

DeviceDispenseBean

public DeviceDispenseBean()

Method Detail

getId

public Identifier getId()

Business Name: PrescriptionDispenseNumber

Un-merged Business Name: PrescriptionDispenseNumber

Relationship: PORX_MT060010CA.DeviceDispense.id

Conformance/Cardinality: MANDATORY (1)

Allows dispense events to be uniquely referenced and is therefore mandatory.

The Prescription Dispense Number is a globally unique number assigned to a prescription dispense by the EHR/DIS irrespective of the source of the supply event

It is created by the EHR/DIS once the dispense has passed all edits and validation.

Un-merged Business Name: PrescriptionDispenseNumber

Relationship: PORX_MT060040CA.DeviceDispense.id

Conformance/Cardinality: MANDATORY (1)

Allows for the referencing of a specific dispense record.

Identifier for a dispensed record is needed so that dispenses may be uniquely referenced. Thus the mandatory requirement.

The Prescription Dispense Number is a globally unique number assigned to a dispense (single fill) by the EHR/DIS irrespective of the source of the dispense.

It is created by the EHR/DIS once the dispense has passed all edits and validation.

setId

public void setId(Identifier id)

Business Name: PrescriptionDispenseNumber

Un-merged Business Name: PrescriptionDispenseNumber

Relationship: PORX_MT060010CA.DeviceDispense.id

Conformance/Cardinality: MANDATORY (1)

Allows dispense events to be uniquely referenced and is therefore mandatory.

The Prescription Dispense Number is a globally unique number assigned to a prescription dispense by the EHR/DIS irrespective of the source of the supply event

It is created by the EHR/DIS once the dispense has passed all edits and validation.

Un-merged Business Name: PrescriptionDispenseNumber

Relationship: PORX_MT060040CA.DeviceDispense.id

Conformance/Cardinality: MANDATORY (1)

Allows for the referencing of a specific dispense record.

Identifier for a dispensed record is needed so that dispenses may be uniquely referenced. Thus the mandatory requirement.

The Prescription Dispense Number is a globally unique number assigned to a dispense (single fill) by the EHR/DIS irrespective of the source of the dispense.

It is created by the EHR/DIS once the dispense has passed all edits and validation.

getStatusCode

public ActStatus getStatusCode()

Business Name: DispenseStatus

Un-merged Business Name: DispenseStatus

Relationship: PORX_MT060010CA.DeviceDispense.statusCode

Conformance/Cardinality: MANDATORY (1)

Indicates how far along the process the dispense event is. It should always be known and is therefore mandatory.

Indicates whether the dispense has been picked up ('complete') or has just been processed ('active').

Un-merged Business Name: DispenseStatus

Relationship: PORX_MT060040CA.DeviceDispense.statusCode

Conformance/Cardinality: MANDATORY (1)

Important in understanding what devices the patient actually has on hand, thus the attribute is mandatory. May also influence the ability of a different pharmacy to dispense the device.

Indicates the status of the dispense record created on the EHR/DIS. If 'Active' it means that the dispense has been processed but not yet given to the patient. If 'Complete', it indicates that the device has been delivered to the patient.

setStatusCode

public void setStatusCode(ActStatus statusCode)

Business Name: DispenseStatus

Un-merged Business Name: DispenseStatus

Relationship: PORX_MT060010CA.DeviceDispense.statusCode

Conformance/Cardinality: MANDATORY (1)

Indicates how far along the process the dispense event is. It should always be known and is therefore mandatory.

Indicates whether the dispense has been picked up ('complete') or has just been processed ('active').

Un-merged Business Name: DispenseStatus

Relationship: PORX_MT060040CA.DeviceDispense.statusCode

Conformance/Cardinality: MANDATORY (1)

Important in understanding what devices the patient actually has on hand, thus the attribute is mandatory. May also influence the ability of a different pharmacy to dispense the device.

getConfidentialityCode

public Set<x_NormalRestrictedTabooConfidentialityKind> getConfidentialityCode()

Business Name: PrescriptionMaskingIndicators

Un-merged Business Name: PrescriptionMaskingIndicators

Relationship: PORX_MT060010CA.DeviceDispense.confidentialityCode

Conformance/Cardinality: OPTIONAL (0-2)

Allows a patient to control access to 'sensitive' prescriptions.

Taboo allows the provider to request restricted access to patient or their care giver.

Constraint: Cant have both normal and one of the other codes simultaneously.

The attribute is optional because not all systems will support masking.

Indicates whether the dispense (and associated prescription) is masked.

Indicates if a provider has requested restricted access to a patient or care giver.
