ca.infoway.messagebuilder.model.ab_mr2007_v02_r02.merged
Class ErrorsOrWarningsBean

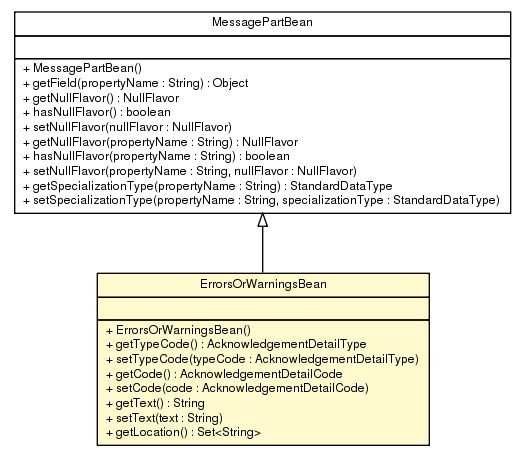

java.lang.Object
  ca.infoway.messagebuilder.model.MessagePartBean
      ca.infoway.messagebuilder.model.ab_mr2007_v02_r02.merged.ErrorsOrWarningsBean

All Implemented Interfaces:

NullFlavorSupport, Serializable

public class ErrorsOrWarningsBean
extends MessagePartBean

Business Name: ErrorsOrWarnings

MCCI_MT000300CA.AcknowledgementDetail: Errors or Warnings

An error, warning or information message associated with the message being acknowledged.

Allows identification issues related to the parsing and low-level processing of the message.

MCCI_MT002200CA.AcknowledgementDetail: Errors or Warnings

An error, warning or information message associated with the message being acknowledged.

Allows identification issues related to the parsing and low-level processing of the message.

MCCI_MT002300CA.AcknowledgementDetail: Errors or Warnings

An error, warning or information message associated with the message being acknowledged.

Allows identification issues related to the parsing and low-level processing of the message.

See Also:

Serialized Form

Constructor Summary

ErrorsOrWarningsBean()

Method Summary

AcknowledgementDetailCode	getCode() Business Name: ResponseCode
Set<String>	getLocation() Business Name: ReferencedMessageLocations
String	getText() Business Name: MessageDescription
AcknowledgementDetailType	getTypeCode() Business Name: MessageType
void	setCode(AcknowledgementDetailCode code) Business Name: ResponseCode
void	setText(String text) Business Name: MessageDescription
void	setTypeCode(AcknowledgementDetailType typeCode) Business Name: MessageType

Methods inherited from class ca.infoway.messagebuilder.model.MessagePartBean

getField, getNullFlavor, getNullFlavor, getSpecializationType, hasNullFlavor, hasNullFlavor, setNullFlavor, setNullFlavor, setSpecializationType

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

ErrorsOrWarningsBean

public ErrorsOrWarningsBean()

Method Detail

getTypeCode

public AcknowledgementDetailType getTypeCode()

Business Name: MessageType

Un-merged Business Name: MessageType

Relationship: MCCI_MT000300CA.AcknowledgementDetail.typeCode

Conformance/Cardinality: MANDATORY (1)

Distinguishes between errors, warnings and information messages.

Different types of messages have substantially different ramifications.

Un-merged Business Name: MessageType

Relationship: MCCI_MT002200CA.AcknowledgementDetail.typeCode

Conformance/Cardinality: MANDATORY (1)

Distinguishes between errors, warnings and information messages.

Different types of messages have substantially different ramifications.

Un-merged Business Name: MessageType

Relationship: MCCI_MT002300CA.AcknowledgementDetail.typeCode

Conformance/Cardinality: OPTIONAL (0-1)

Distinguishes between errors, warnings and information messages.

Different types of messages have substantially different ramifications.

setTypeCode

public void setTypeCode(AcknowledgementDetailType typeCode)

Business Name: MessageType

Un-merged Business Name: MessageType

Relationship: MCCI_MT000300CA.AcknowledgementDetail.typeCode

Conformance/Cardinality: MANDATORY (1)

Distinguishes between errors, warnings and information messages.

Different types of messages have substantially different ramifications.

Un-merged Business Name: MessageType

Relationship: MCCI_MT002200CA.AcknowledgementDetail.typeCode

Conformance/Cardinality: MANDATORY (1)

Distinguishes between errors, warnings and information messages.

Different types of messages have substantially different ramifications.

Un-merged Business Name: MessageType

Relationship: MCCI_MT002300CA.AcknowledgementDetail.typeCode

Conformance/Cardinality: OPTIONAL (0-1)

Distinguishes between errors, warnings and information messages.

Different types of messages have substantially different ramifications.

getCode

public AcknowledgementDetailCode getCode()

Business Name: ResponseCode

Un-merged Business Name: ResponseCode

Relationship: MCCI_MT000300CA.AcknowledgementDetail.code

Conformance/Cardinality: POPULATED (1)

Indicates the specific issue represented by this message.

By providing coded identification of issues and errors, allows applications to have logic that manages particular errors and warnings automatically. However in some circumstances, a code may not be available. Therefore the attribute is marked as 'populated'.

Un-merged Business Name: ResponseCode

Relationship: MCCI_MT002200CA.AcknowledgementDetail.code

Conformance/Cardinality: POPULATED (1)

Indicates the specific issue represented by this message.

By providing coded identification of issues and errors, allows applications to have logic that manages particular errors and warnings automatically. However in some circumstances, a code may not be available. Therefore the attribute is marked as 'populated'.

The coding strength is CWE (coded with extensions). The use of local codes is only permitted when those codes are submitted to the SC for consideration and if the SC makes a recommendation other then adoption of the local code, jurisdictions are bound to adopt the recommendation.

By providing coded identification of issues and errors, allows applications to have logic that manages particular errors and warnings automatically. However in some circumstances, a code may not be available. Therefore the attribute is marked as 'populated'.

The coding strength is CWE (coded with extensions). The use of local codes is only permitted when those codes are submitted to the SC for consideration and if the SC makes a recommendation other then adoption of the local code, jurisdictions are bound to adopt the recommendation.

Un-merged Business Name: ResponseCode

Relationship: MCCI_MT002300CA.AcknowledgementDetail.code

Conformance/Cardinality: POPULATED (1)

Indicates the specific issue represented by this message.

By providing coded identification of issues and errors, allows applications to have logic that manages particular errors and warnings automatically. However in some circumstances, a code may not be available. Therefore the attribute is marked as 'populated'.

The coding strength is CWE (coded with extensions). The use of local codes is only permitted when those codes are submitted to the SC for consideration and if the SC makes a recommendation other then adoption of the local code, jurisdictions are bound to adopt the recommendation.

By providing coded identification of issues and errors, allows applications to have logic that manages particular errors and warnings automatically. However in some circumstances, a code may not be available. Therefore the attribute is marked as 'populated'.

The coding strength is CWE (coded with extensions). The use of local codes is only permitted when those codes are submitted to the SC for consideration and if the SC makes a recommendation other then adoption of the local code, jurisdictions are bound to adopt the recommendation.

setCode

public void setCode(AcknowledgementDetailCode code)

Business Name: ResponseCode

Un-merged Business Name: ResponseCode

Relationship: MCCI_MT000300CA.AcknowledgementDetail.code

Conformance/Cardinality: POPULATED (1)

Indicates the specific issue represented by this message.

By providing coded identification of issues and errors, allows applications to have logic that manages particular errors and warnings automatically. However in some circumstances, a code may not be available. Therefore the attribute is marked as 'populated'.

Un-merged Business Name: ResponseCode

Relationship: MCCI_MT002200CA.AcknowledgementDetail.code

Conformance/Cardinality: POPULATED (1)

Indicates the specific issue represented by this message.

By providing coded identification of issues and errors, allows applications to have logic that manages particular errors and warnings automatically. However in some circumstances, a code may not be available. Therefore the attribute is marked as 'populated'.

The coding strength is CWE (coded with extensions). The use of local codes is only permitted when those codes are submitted to the SC for consideration and if the SC makes a recommendation other then adoption of the local code, jurisdictions are bound to adopt the recommendation.

By providing coded identification of issues and errors, allows applications to have logic that manages particular errors and warnings automatically. However in some circumstances, a code may not be available. Therefore the attribute is marked as 'populated'.

The coding strength is CWE (coded with extensions). The use of local codes is only permitted when those codes are submitted to the SC for consideration and if the SC makes a recommendation other then adoption of the local code, jurisdictions are bound to adopt the recommendation.

Un-merged Business Name: ResponseCode

Relationship: MCCI_MT002300CA.AcknowledgementDetail.code

Conformance/Cardinality: POPULATED (1)

Indicates the specific issue represented by this message.

By providing coded identification of issues and errors, allows applications to have logic that manages particular errors and warnings automatically. However in some circumstances, a code may not be available. Therefore the attribute is marked as 'populated'.

The coding strength is CWE (coded with extensions). The use of local codes is only permitted when those codes are submitted to the SC for consideration and if the SC makes a recommendation other then adoption of the local code, jurisdictions are bound to adopt the recommendation.

By providing coded identification of issues and errors, allows applications to have logic that manages particular errors and warnings automatically. However in some circumstances, a code may not be available. Therefore the attribute is marked as 'populated'.

The coding strength is CWE (coded with extensions). The use of local codes is only permitted when those codes are submitted to the SC for consideration and if the SC makes a recommendation other then adoption of the local code, jurisdictions are bound to adopt the recommendation.

getText

public String getText()

Business Name: MessageDescription

Un-merged Business Name: MessageDescription

Relationship: MCCI_MT000300CA.AcknowledgementDetail.text

Conformance/Cardinality: REQUIRED (0-1)

The human-readable description of the error, warning or information message. May convey additional details not present in the 'code', but is not intended to be human-processable.

Allows supplementing the 'computer' information for human-readability.

Un-merged Business Name: MessageDescription

Relationship: MCCI_MT002200CA.AcknowledgementDetail.text

Conformance/Cardinality: REQUIRED (0-1)

The human-readable description of the error, warning or information message. May convey additional details not present in the 'code', but is not intended to be human-processable.

Allows supplementing the 'computer' information for human-readability.

Un-merged Business Name: MessageDescription

Relationship: MCCI_MT002300CA.AcknowledgementDetail.text

Conformance/Cardinality: REQUIRED (0-1)

The human-readable description of the error, warning or information message. May convey additional details not present in the 'code', but is not intended to be human-processable.

Allows supplementing the 'computer' information for human-readability.

setText

public void setText(String text)

Business Name: MessageDescription

Un-merged Business Name: MessageDescription

Relationship: MCCI_MT000300CA.AcknowledgementDetail.text

Conformance/Cardinality: REQUIRED (0-1)

The human-readable description of the error, warning or information message. May convey additional details not present in the 'code', but is not intended to be human-processable.

Allows supplementing the 'computer' information for human-readability.

Un-merged Business Name: MessageDescription

Relationship: MCCI_MT002200CA.AcknowledgementDetail.text

Conformance/Cardinality: REQUIRED (0-1)

The human-readable description of the error, warning or information message. May convey additional details not present in the 'code', but is not intended to be human-processable.

Allows supplementing the 'computer' information for human-readability.

Un-merged Business Name: MessageDescription

Relationship: MCCI_MT002300CA.AcknowledgementDetail.text

Conformance/Cardinality: REQUIRED (0-1)

The human-readable description of the error, warning or information message. May convey additional details not present in the 'code', but is not intended to be human-processable.

Allows supplementing the 'computer' information for human-readability.

getLocation

public Set<String> getLocation()

Business Name: ReferencedMessageLocations

Un-merged Business Name: ReferencedMessageLocations

Relationship: MCCI_MT000300CA.AcknowledgementDetail.location

Conformance/Cardinality: REQUIRED (0-5)

Indicates the location of the elements within the message instance that triggered this error, warning or information message.

Allows syntax and other messages to be linked to particular fields within the message.

I.e. only the default 'child' axis is permitted, occurrence numbers are always specified, and no other predicates are permitted.

Un-merged Business Name: ReferencedMessageLocations

Relationship: MCCI_MT002200CA.AcknowledgementDetail.location

Conformance/Cardinality: REQUIRED (0-5)

Indicates the location of the elements within the message instance that triggered this error, warning or information message.

Allows syntax and other messages to be linked to particular fields within the message.

I.e. only the default 'child' axis is permitted, occurrence numbers are always specified, and no other predicates are permitted.

Un-merged Business Name: ReferencedMessageLocations

Relationship: MCCI_MT002300CA.AcknowledgementDetail.location

Conformance/Cardinality: OPTIONAL (0-5)

Indicates the location of the elements within the message instance that triggered this error, warning or information message.

Allows syntax and other messages to be linked to particular fields within the message.

I.e. only the default 'child' axis is permitted, occurrence numbers are always specified, and no other predicates are permitted.
